NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar

NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar
NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar

Großes Bild :  NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar

Produktdetails:
Herkunftsort: CHINA
Markenname: NBSANMINSE
Zertifizierung: ISO9001
Modellnummer: SMF17
Zahlung und Versand AGB:
Min Bestellmenge: 10pcs
Preis: Negotiate
Verpackung Informationen: Schachtel
Lieferzeit: 5-30 Tage
Zahlungsbedingungen: L/c, t/t
Versorgungsmaterial-Fähigkeit: 10000pcs
Kontakt

NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar

Beschreibung
Modell: SMF17 Größe: NPT 1-4 NPT 3-8 Adapter
Zertifizierung: ce Merkmale: Stabiles bemaltes Stahl
Material: Plastik
Hervorheben:

8 bis 10 bar Luftkompressordruckschalter

,

13 bis 16 bar Luftkompressordruckschalter

ON>OFF is NO , ON<OFF is NC

The images shown are not all the actual item and are for your reference only

NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar 0NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar 1NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar 2NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar 3NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar 4NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar 5NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar 6


NPT1-4 = NPT 1/4"
NPT 3-8 Adapter = NPT 1/4" to 3/8" Adapter

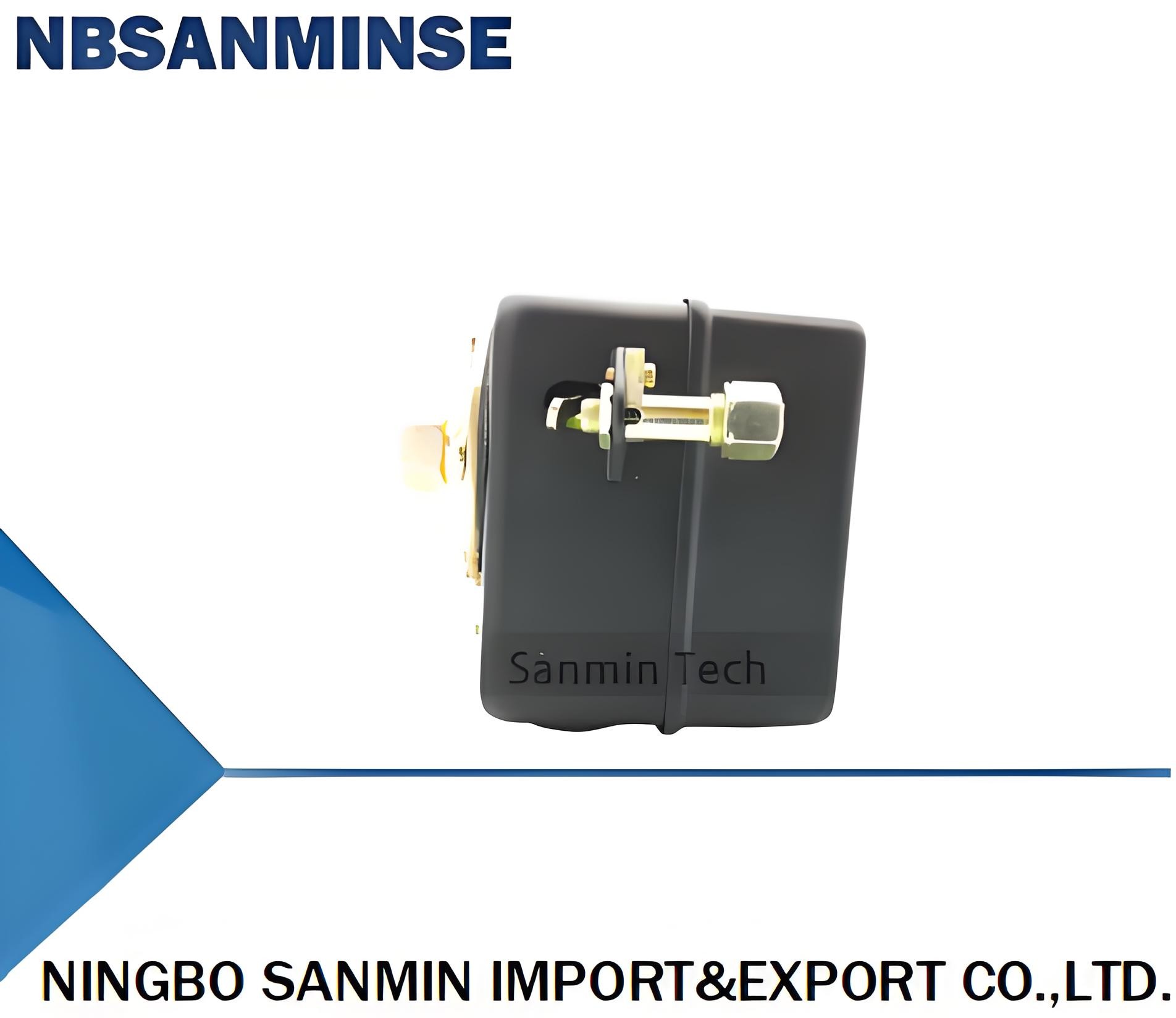

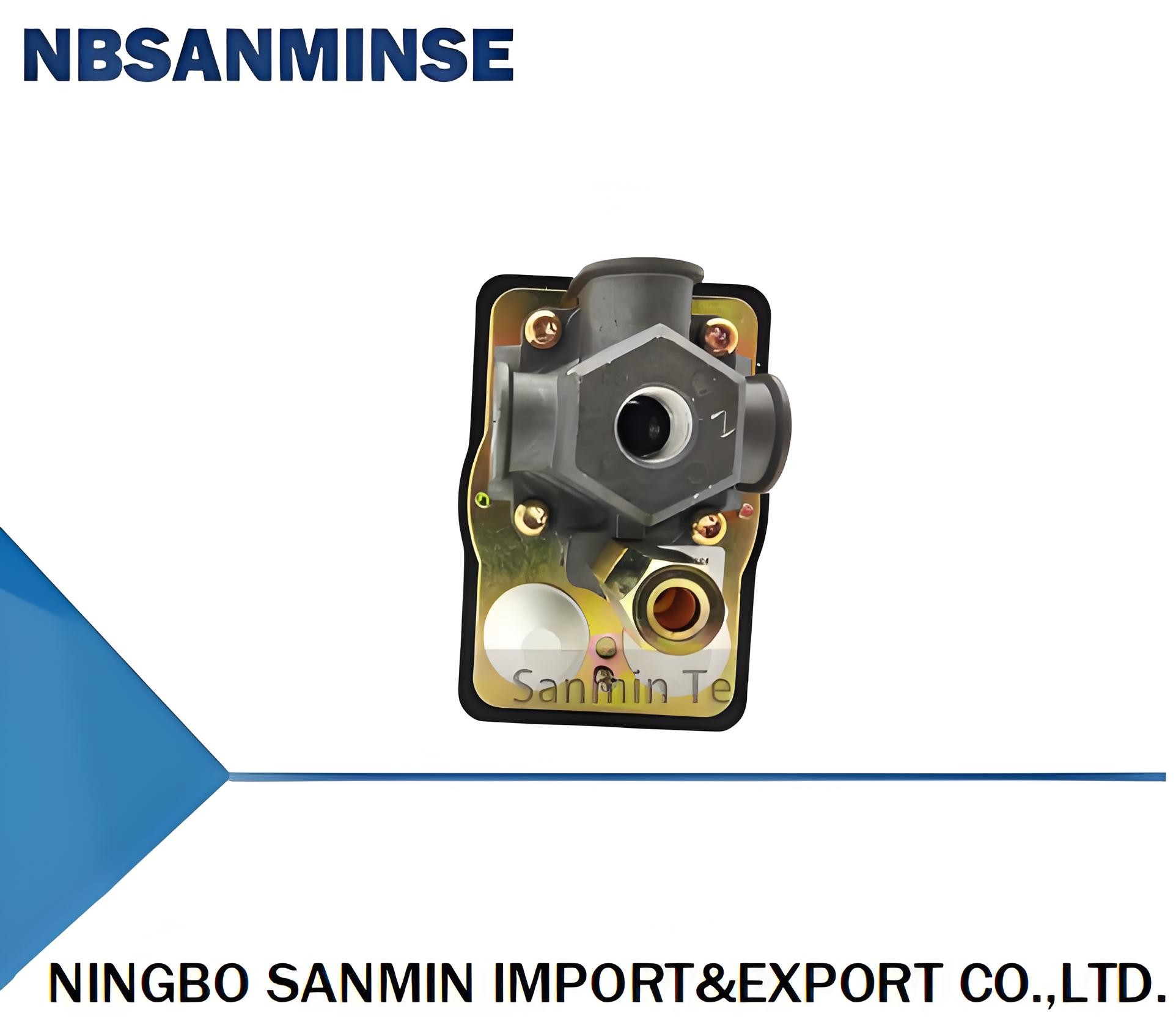

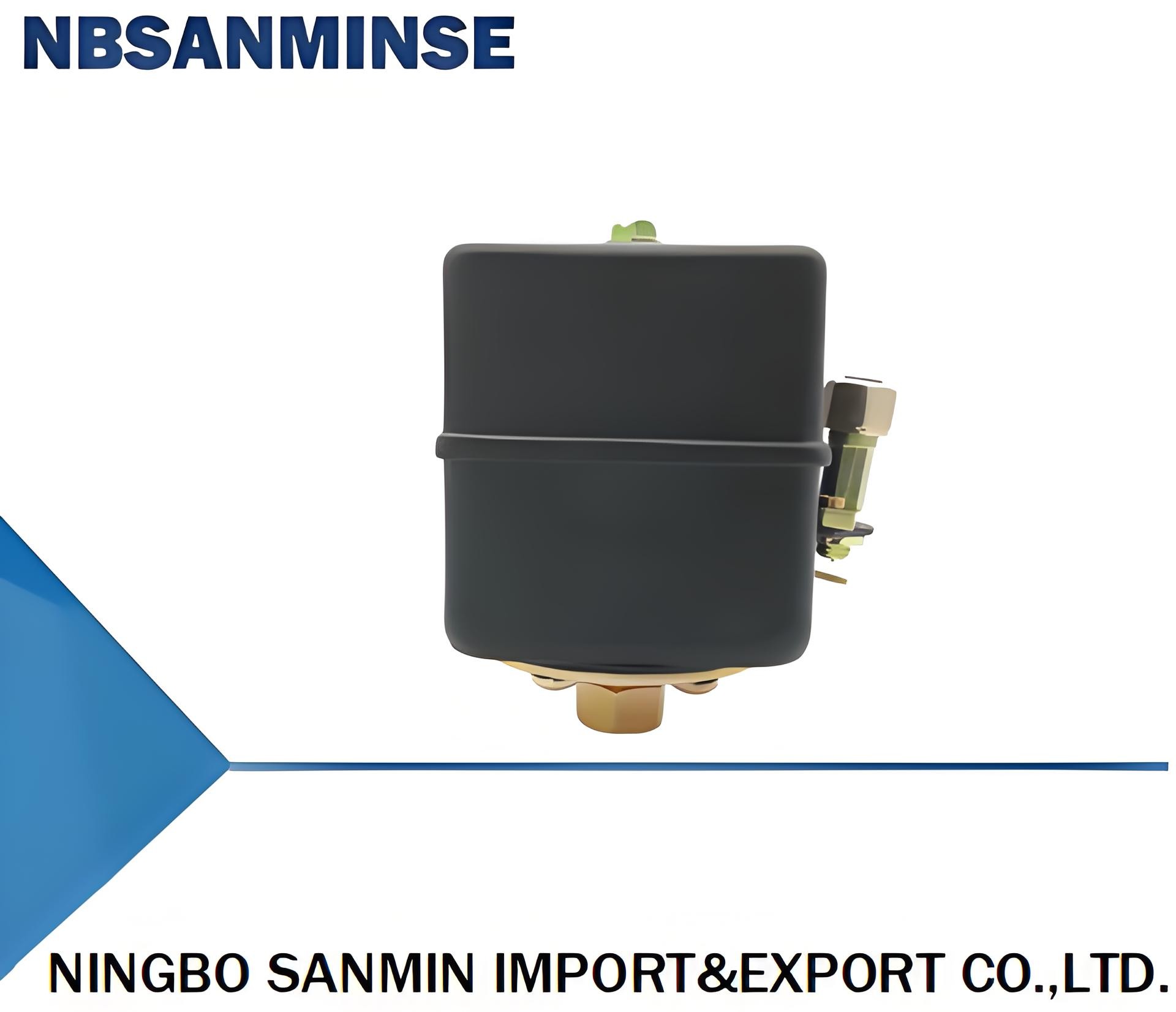

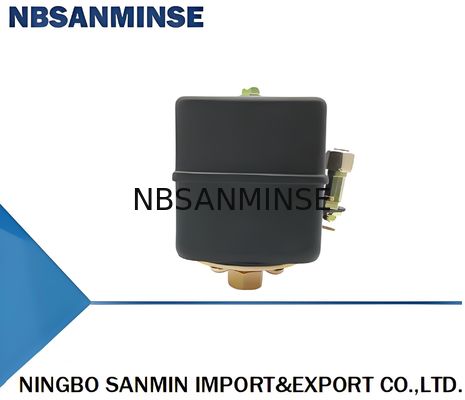

The rugged SMF17 pressure switch is designed for the demanding requirements of lager, heavy duty commercial air compressors (up to 250 psi). The sturdy painted steel case and cover resists the harsh conditions encountered in industrial applications. This style is also available with an unloader valve to prevent the compressor from starting under load.



Sturdy Stamped Steel Case & Cover Visible Contact

No Drift Pressure Setting Captive Cover nut

Ample Wiring Room 2 Ground Screw

Easy to Adjust Automatic Unloader Valve Available

Pulsation Dampener Standard 5HP Heavy Duty Rating

250 PSI Max



MODEL
Min ON (Cut-In)PSI
Max Off
(Cut-Out) PSI
Differential
PSI
Factory Setting PSI
Electrical Rating
Pipe Fittings
Contact Arrangement
120VAC
240VAC
SMF17
40
250
25-60
145-175
24A
12A
1/4", 3/8" Male or Female NPT
NC
SMF17-S
15
60
7-15
30-40
24A
12A
1/4", 3/8" Male or Female NPT
NC

Conversion: 1Kgf/cm2 = 14.2PSI , 1Bar = 14.5PSI
Approval: UL, CSA
