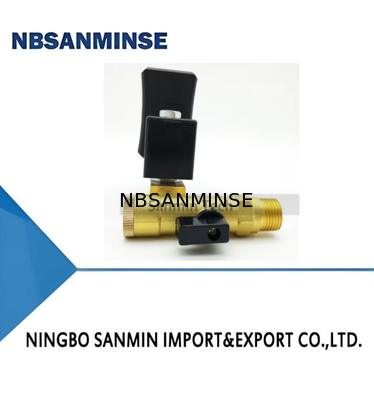

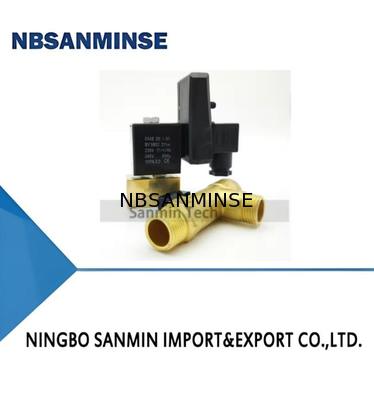

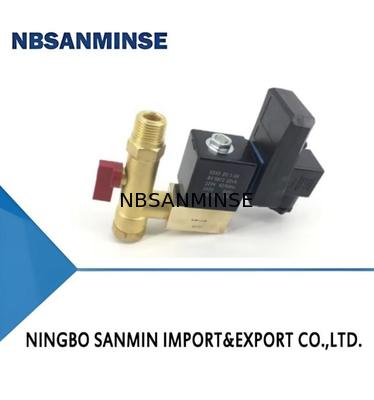

SR-G-15 4Mpa G 1/2 High Pressure Solenoid For Electronic Drain Valves Air Compressor Valve Brass Solenoid Drainer NBSANMINSE

Universeal electronic drain valve in analog circuit solid match the solenoid valve ,electronic timer implementation to the timing of condensed water from compressed air systemuto emissions . Drying machine is sidely used in filter separator gasholder dripping feet , compressed air system components , discharge time and interval time can be adjusted according to different needs .

Characteristic :

Easy installation Automatic

Time interval and discharge time can be adjusted with the test button

Orifice size : 3mm

Heat resistance level : H calss IP65

Filter configuration ball valves , import and export into 90 °

Reliability :

Solenoid valve is divided into normally closed and normally open . General choose normally close , power on is open and power off is shut down ; But in the open for a long time and very short close time to choose the normally open type .

Applicability :

1 . The pipeline fluid must same as solenoid valve marked medium .

2 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid

valve , general solenoid valve is better claim to medium cleanness

3 . Pay attention to the environmental temperature on the influence of solenoid valve .

4 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions

permit , please install bypass pipe , easy maintenance ; When there is water drain to customize

solenoid valve opening and closing time regulation .

Security :

General solenoid valve is not waterproof , when needs waterproof model , we can be customized

Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline , otherwise life will shorten or other unexpected circumstances .

1 please care the products details at our website, any confuse please contact us free or call whatsup 0086 15168536055 skype:fhtrust  or Note your request online.  Big quantity purchase ,please contact our online service to ask more economic shipping way or discuss the more pretty price

2 After place order ,please care the message of your Aliexpress or mobile ,we may contact you about the details for the delivery address, declare value ,Invoice value or others.

3 Please do not forget to give us five-star praise , your approval is the greatest affirmation and support for our products

If some item not show the NPT ,please contact our online service for ask NPT thread

FRL ,Brass Valve , Pneumatic Solenoid Valve

06=1/8 08=1/4 10=3/8 15=1/2 OR 01=1/8 02=1/4 03=3/8 04=1/2 06=3/4 08=1

Angle Seat Valve,Pulse Valve , Mechanical Valve ,Pneumatic Silencer

06=1/8 08=1/4 10=3/8 15=1/2 20=3/4 25=1 32=1-1/4 40=1-1/2 50=2 65=2-1/2 80=3

Needle Valve ,Pneumatic Fitting :01=1/8 02=1/4 03=3/8 04=1/2 06=3/4 08=1

Ball Valve :04=1/8 06=1/4 08=3/8 15=1/2 20=3/4 25=1 32=1-1/4 40=1-1/2 50=2

Check Valve :08=1/4 10=3/8 12=1/2 16=3/4 20=1 25=1-1/4 30=1-1/2 40=2

After sale Note

1.The images shown are not all the actual item and are for your reference only

2.SERVICE transit time is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season. If not received goods on time, please kindly contact our online service to check the goods condition. The Logistics given date is 90days for Brazil ,others are 60 days

3.Missing goods, if exceeded 60 days (Brazil 90 days)please ask return money or contact our online service

4.Quality problem ,please kindly don't give negative feedback ,contact our online service to show the problem and submission of your request, we will process in the first time and give satisfying reply

Material: Buffing BrassnBody: Solenoid Automatic DrainernPort Size: G 1/2nDischarge time (ON): 0.5 ~ 10 secnTemperature of Media: OthernPressure: 1.6Mpannn|Air Compressor Drain Valve Solenoid|Air Compressor Drain Solenoid|nn**Robust Design and Performance**nThe SR-D-15 G1/2 Auto Drain Air Compressor Brass Vent Device Valve is a robust and reliable piece of equipment designed to manage condensed water from compressed air systems. Crafted from high-quality buffing brass, this valve is built to withstand the rigors of industrial environments. The solenoid-controlled mechanism ensures precise and efficient draining, with a discharge time ranging from 0.5 to 10 seconds, making it suitable for various applications.nn**Versatile and User-Friendly**nThis air compressor drain valve is not just any ordinary valve; it's an intelligent solution for managing water in compressed air systems. With an interval time adjustable from 0.5 to 45 minutes and a pressure rating of 1.6Mpa, it caters to a wide range of scenarios. The valve's design allows for easy installation and maintenance, making it a valuable asset for technicians and engineers. Its compatibility with various media types and its ability to withstand high temperatures up to 105℃ make it a versatile component in any compressed air system.nn**Enhanced Durability and Reliability**nThe SR-D-15 G1/2 Auto Drain Air Compressor Brass Vent Device Valve is engineered to provide long-lasting performance. It's designed to handle a wide range of pressures, from low to high, ensuring that it can adapt to various system requirements. The solenoid valve is available in both normally closed and normally open configurations, allowing users to choose the most suitable option based on their specific needs. Whether it's for a filter separator, gasholder, or compressed air system components, this valve is the go-to choice for reliable and efficient water management.
