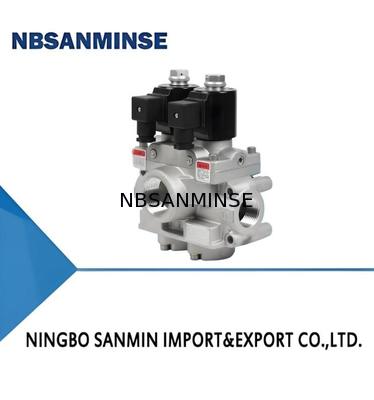

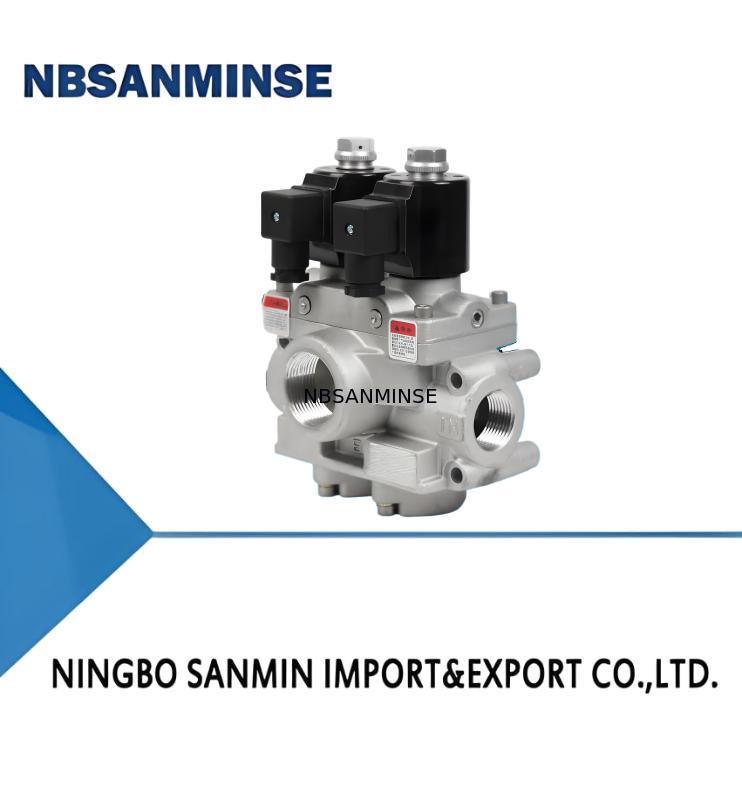

K23JSD-HSX Series double valves for press machine

K23JSD-HSX Series double valves for press machine
K23JSD-HSX Series double valves for press machine

Großes Bild :  K23JSD-HSX Series double valves for press machine

Produktdetails:
Herkunftsort: China
Markenname: NBSANMINSE
Zertifizierung: ISO9001
Modellnummer: K23JSD-HSX
Zahlung und Versand AGB:
Min Bestellmenge: 10pcs
Preis: Verhandlungsfähig
Verpackung Informationen: Kasten
Lieferzeit: 5-30 Tage
Zahlungsbedingungen: L/C, T/T
Versorgungsmaterial-Fähigkeit: 10000 Stück
Kontakt

K23JSD-HSX Series double valves for press machine

Beschreibung
Arbeitstemperatur ((°C): 5-40 Nennspannung: DC 24V
Haltestrom: 0,32 Leistung: 7,7 (W)
Arbeitsdruck: 0,2–0,7 (Mpa)
Hervorheben:

Pneumatic solenoid double valve

,

Press machine solenoid valve

,

HSX series double valve

Features:
On the basis of many years of use of the punching machine, further improve the responsiveness, the pursuit of reliability.
The new solenoid uses DIN terminals and coil locks to ensure highwater resistance.
A complete range of airclutches and brake controls for small, medium, large and high speed mechanical stamping.
The valve structure with large exhaust characteristics and fast response can achisve small deviation.
When a vavefails, the cross-sectional area of the exhaust gas pathis greaterthan the cross-sectional area of the supply
gas path. The pressure on the OUT sideis lower than the operating pressure of the clutch or brake, so the press does not
operate. The safety factor is higher than that of a singlesolenoid valve configured in the stamping machinery.
Standard equipment with manuallyoperated buttons is regularly checked for easy maintenance.
Order Code:
K23JSD-HSX Series double valves for press machine 0
① Medium: Air
② Circuit Form: 2/3 Way
③ Valve Body Form: Poppet Type
④ Dual Valve
⑤ Control Form: Electric Control
⑥ Connection Type: Pipe Connection
⑦ Nominal Diameter: 15 G1/2, 20 G3/4, 25 G1, 32 G1-1/4, 40 G1-1/2
⑧ Product Model: HSX Series
⑨ Rated Voltage: AC100V, AC110V, AC200V, AC220V, DC-24V
Symbols:
K23JSD-HSX Series double valves for press machine 1
K23JSD-HSX Series double valves for press machine 2
K23JSD-HSX Series double valves for press machine 3
K23JSD-HSX Series double valves for press machine 4
K23JSD-HSX Series double valves for press machine 5
Type Nominal Dia IN OUT EX M N L G H P   E F
K23JSD-L15W 15  G1/2 G1/2 G3/4 67  142  177  128  35  50    65  65
K23JSD-L20W 20  G3/4 G3/4 G1-1/4 102  165  202  140  52  50    72  71.4
K23JSD-L25W 25  G1 G1 G1-1/4 102  165  202  140  52  50    72  71.4
K23JSD-L15W 15  G1/2 G1/2 G1 72  142  177  128  44  50    65  64
K23JSD-L20W 20  G3/4 G3/4 G1 72  142  177  128  44  50    65  64
K23JSD-L32W 32  G1-1/4 G1-1/4 G2 125  259  290  217  77  50  110  124
K23JSD-L40W 40  G1-1/2 G1-1/2 G2 125  259  290  217  77  50  110  124
Par ameters Type K23JSD-L15W K23JSD-L20W K23JSD-L25W K23JSD-L15W K23JSD-L2W
Dia
15  20  25  15  20
Port size IN G1/2 G3/4 G1 G1/2 G3/4
OUT G1/2 G3/4 G1 G1/2 G3/4
EX G3/4 G1-1/4 G1-1/4 G1 G1
Range of working pressure(Ipa)
0.2-0.7
Torking temperature℃)
5-40
Direction changing Tine(sec)
≤0.01 ≤0.012 ≤0.012 ≤0.012 ≤0.012
HEffective sectional area Cv(mm²) IN OUT 22  55  55  45  45
OUT EX 160  280  320  188  270
K23JSD-HSX Series double valves for press machine 6
Valve Type K23JSD-W,H23JSD-W
Rated Voltage DC 24V
Holding Current 0.32
Power Consumption(W) 7.7
