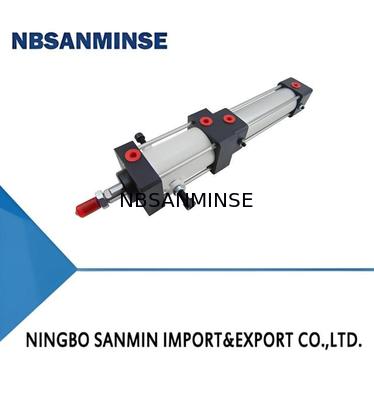

QGSJ Locking cylinder locking and stopping at any position in the middle of the stroke

Beschreibung
Maximaler Schlaganfall: 800 (mm) Bremsrichtung: bidirektional
Druckbereich: 3,5 ~ 10 (bar) Mitteltemperatur: -25 ～ +60 (℃)
Betriebsgeschwindigkeit: 50~300 (mm/s) Material: Aluminium
Hervorheben:

800mm Maximum Stroke Pneumatic Air Cylinder

,

Bidirectional Braking Guided Pneumatic Cylinder

,

QGSJ Model Locking Cylinder

I. Features

  1. This series is a derivative of the 10A-5 series cylinders, with many parts interchangeable.
  2. Adopts aluminum alloy cylinder barrel and end caps, with an attractive appearance and light weight.
  3. Can achieve locking and stopping at any position in the middle of the stroke, with high repeatability.
  4. Uses a reasonable locking mechanism; the locking force is independent of the piston movement direction, ensuring reliable locking.
  5. Oil-free (oil-lubricated optional) lubrication avoids oil-gas contamination, and the oil mist lubricator can be omitted.
II. Graphical Symbols
Standard Type
QGSJ Locking cylinder locking and stopping at any position in the middle of the stroke 0
Type with Switch
QGSJ Locking cylinder locking and stopping at any position in the middle of the stroke 1
III. Model
Standard Type
QGSJ Locking cylinder locking and stopping at any position in the middle of the stroke 2
Type with Switch
QGSJ Locking cylinder locking and stopping at any position in the middle of the stroke 3




① Cylinder Model
②  Installation Form See Note in Section "V"
③  Cylinder Bore See the following table
④  Cylinder Stroke See the following table
⑤ Code J H
 Switch Model FD-21R FD-19RV
⑥ Number of Switches
⑦  Connection Accessory See Note in Section "V"

IV. Main Technical Parameters



Cylinder Bore (mm) Φ40 Φ50 Φ63 Φ80 Φ100
Maximum Stroke (mm) 800  1000
Working Medium Dry, Clean Compressed Air
Working Pressure Range (bar) 3.5～10
Working Medium Temperature (℃) -25 ～ +60 (under non-freezing conditions)
Operating Speed Range (mm/s) 50～300
Braking Direction Bidirectional
Lock Release Pressure (bar) ≥3.5 ≥4 ≥4 ≥4.5 ≥4
Repeat Positioning Accuracy (mm) ≤±2 (at maximum speed and maximum handling load)
Maximum Handling Load (kg) 34  53  85  138  215
  Thrust (N) (at η=0.8, P=5bar) 502  769  1221  1970  3078
Pull Force (N) (at η=0.8, P=5bar)  422  620  1072  1778  2886



V. Outline and Installation Dimensions

QGSJ Locking cylinder locking and stopping at any position in the middle of the stroke 4

Outline Drawing of QGSJ Series Locking Cylinder (Basic Type)
QGSJ Locking cylinder locking and stopping at any position in the middle of the stroke 5
QGSJ Locking cylinder locking and stopping at any position in the middle of the stroke 6
