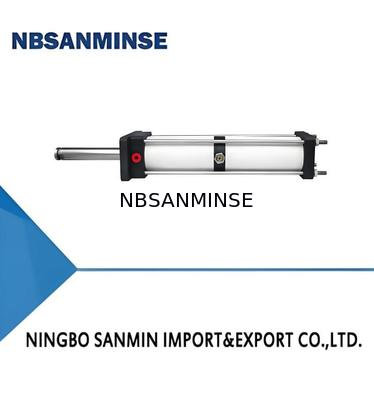

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption
QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption

Großes Bild :  QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption

Produktdetails:
Herkunftsort: China
Markenname: NBSANMINSE
Zertifizierung: ISO9001
Modellnummer: QGT
Zahlung und Versand AGB:
Min Bestellmenge: 10 Stück
Preis: Verhandlungsfähig
Verpackung Informationen: Kasten
Lieferzeit: 5-30 Tage
Zahlungsbedingungen: L/C, T/T
Versorgungsmaterial-Fähigkeit: 10000 Stück
Kontakt

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption

Beschreibung
Dämpfungswinkel: 2~8 (Grad) Medium- und Umgebungstemperatur: -5~+60(℃)
Schlaganfall S: 125 (mm) Maximale Schlagarbeit bei P=6bar: 31,6(≥N ·m)
Material: Aluminium Schlagfrequenz bei P=6bar: 60 (mal/min)
Hervorheben:

QGT Model Pneumatic Air Cylinder

,

2~8 Degrees Cushioning Angle Pneumatic Air Cylinder

,

-5~+60℃ Operating Temperature Pneumatic Air Cylinder

I. Features
  1. Utilizes compressed air to generate large impact force, suitable for multiple applications such as printing, blanking, stamping, and assembly.
  2. Simple structure, low air consumption, and large impact force.
II. Model
QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 0
① Cylinder Model
② Mounting Type (See Next Page)
③ Cylinder Bore (See Below Table)
④ Stroke (See Below Table)
III. Main Technical Parameters of Cylinder
Cylinder Bore(mm) Φ63 Φ80 Φ100 Φ125
Working Pressure(bar) 2~8
Working Medium Dried compressed air with oilmist,filtered to remove water
Medium and Ambient Temperature(℃) -5~+60
Stroke S(mm) 125  160  200  250
Maximum Impact Work at P=6bar(≥N ·m) 31.6  69  143  294
Stroke Corresponding to Maximum Impact Work(mm) 60  80  110  132
Impact Frequency at P=6bar (times/min) 60  50  40  30

 Note: The maximum impact work is at 0.55 S of the stroke in the table.

IV. Graphic Symbols and Mounting Types

SD (Basic Type)

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 1

J (Axial Foot Mount Type)

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 2

F (Rear Flange Type)

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 3

FQ (Front Flange Type)

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 4

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 5
