QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads

Name: QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads
Brand: Ningbo Sanmin Import And Export Co.,Ltd.
SKU: QGaB QGbB
Availability: InStock

Alle Produkte

Pneumatische Magnetventile
(523)

Pneumatisches Impuls-Ventil
(62)

Pneumatisches Winkel-Seat-Ventil
(13)

Pneumatischer Luft-Vibrator
(21)

Messingmagnetventil
(38)

Filter-Regler-Fettspritze
(84)

Pneumatischer Luft-Zylinder
(75)

pneumatische Luftinstallationen
(174)

HLK-Ventil
(80)

Flüssiges Manometer
(81)

Digital-Druckgeber
(40)

Hydraulik-Kugelhahn
(44)

hydraulischer Akkumulator
(16)

Industrielle Automatisierungs-Lösungen
(11)

Frequenzumrechner
(9)

Bescheinigung

China Ningbo Sanmin Import And Export Co.,Ltd. zertifizierungen

Ich bin online Chat Jetzt

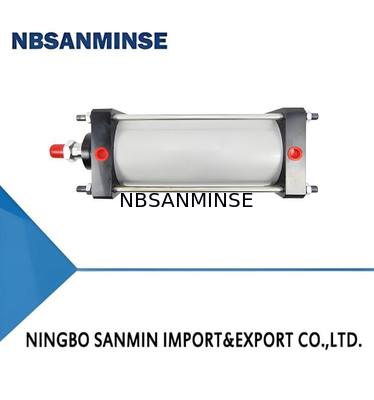

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads

Großes Bild : QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads

Produktdetails:

Herkunftsort:	China
Markenname:	NBSANNINSE
Zertifizierung:	ISO9001
Modellnummer:	QGaB QGbB

Zahlung und Versand AGB:

Min Bestellmenge:	10 Stück
Preis:	Verhandlungsfähig
Verpackung Informationen:	Kasten
Lieferzeit:	5-30 Tage
Zahlungsbedingungen:	L/C, T/T
Versorgungsmaterial-Fähigkeit:	10000 Stück

Kontakt

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads

Beschreibung

Arbeitsdruck:	1,5~8 (bar)	Beweisdruck:	12 (Takt)
Schlaganfall:	20 ~ 200 (mm)	Betriebstemp:	-25 ～ +80(℃)
Bohrung:	Φ40 (mm)	Material:	Aluminium
Hervorheben:	QGaB QGbB Model Pneumatic Air Cylinder , 12 bar Proof Pressure Air Cylinder , 1.5~8 bar Working Pressure Pneumatic Cylinder

I. Features

1.It is a derivative product of QGA and QGB series cylinders.

2.The piston rod diameter is larger than the standard size, with good rigidity and can bear large loads.

II. Graphical Symbols

Cylinder without Cushion

Cylinder with Cushion

III. Model

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads 2

IV. Main Technical Parameters

Model	QGAb,QGBb
Bore (mm)	Φ40	Φ50	Φ63	Φ80	Φ100	Φ125	Φ160	Φ200
Stroke (mm)	20～200	25～250	30～300	40～400	50～1000	63～1250	80～1600	100～2000
Working Pressure (bar)	1.5～8
Proof Pressure (bar)	12
Operating Temperature Range (℃)	-25 ～ +80 (under non-freezing conditions)
Working Medium	Purified compressed air with oil mist

V. Outline and Installation Dimensions

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads 3

Outline Drawing of QGAb Type Cylinder

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads 4
