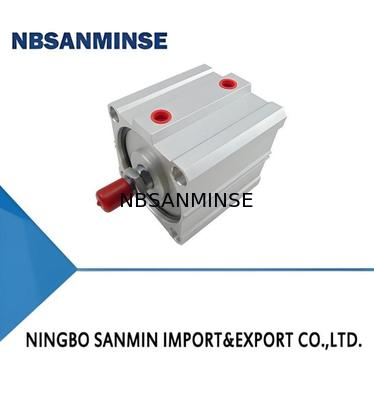

QGY-M Compact Air Cylinder Heavy Type Bore 20-125

Großes Bild : QGY-M Compact Air Cylinder Heavy Type Bore 20-125

Produktdetails:

Herkunftsort:	China
Markenname:	NBSANMINSE
Zertifizierung:	ISO9001
Modellnummer:	QGY-M

Zahlung und Versand AGB:

Min Bestellmenge:	10 Stück
Preis:	Verhandlungsfähig
Verpackung Informationen:	Kasten
Lieferzeit:	5-30 Tage
Zahlungsbedingungen:	L/C, T/T
Versorgungsmaterial-Fähigkeit:	10000 Stück

Kontakt

QGY-M Compact Air Cylinder Heavy Type Bore 20-125

Beschreibung

Beweisdruck:	15(bar)	Arbeitsdruck:	1~10 (bar)
Anwendbare Bohrung:	Φ20~Φ100	Arbeitsmedium:	Nicht erforderlich
Betriebstemp:	-25 ～ +80 (℃)	Material:	Aluminium
Hervorheben:	QGY-M Model Pneumatic Air Cylinder , 1~10 Bar Working Pressure Air Cylinder , 15 Bar Proof Pressure Pneumatic Cylinder

I. Features

A newly developed product independently developed by absorbing and digesting advanced foreign technologies.
Small axial dimension, with a compact, lightweight and attractive structure.
Direct installation, no mounting accessories required.
Oil-free (oil lubrication is also optional) lubrication, which avoids oil-gas pollution and eliminates the need for an oil mist lubricator

II. Graphic Symbols and Appearance

QGY-M (Standard Type)
QGY (D)-M (Standard Type with Front Spring Single-Action)
QGYR-M (Type with Switch)
QGYR (D)-M (Type with Switch and Front Spring Single-Action)

III. Model

QGY-M Compact Air Cylinder Heavy Type Bore 20-125 4

IV. Main Technical Parameters

1. Main Technical Parameters of the Cylinder

model		QGY-M,QGYR-M	QGY(D)-M,QGYR(D)-M
Cylinder Bore (mm)		20,25,32,40,50,63,80, 100,125	20	25		32		40		50	63	80	100	φ125
Pressure Resistance (bar)		15
Operating Pressure (bar)		1～10	2～10
Operating Temperature Range (℃)		-25 ~ +80 (under non-freezing conditions)
Maximum Stroke (mm)		Φ20~Φ25:30; Φ32~φ125:50	Φ20~Φ25:30;Φ32~Φ40:35;Φ50~Φ100:40;Φ125:50
Operating Medium		Purified Dry Compressed Air
Lubrication		Not Required (Lubrication Optional)
Spring Reaction Force at Maximum Stroke	(N) - Initial Reaction Force		14.5		22.8		32		51.8	72	83.2	115.5	128.7	488
	(N) - Final Reaction Force		48.1		57		102		142.5	216	211.2	247.5	260.7	1442

2. Model and Main Technical Parameters of the Switch

Code

Model

Suitable Cylinder Bore

Operating Voltage Range

Operating Current Range

Maximum Contact Capacity

FD-72R

Φ20~Φ100

5～240V DC/AC

100mA(max)

10W

V. Overall and Mounting Dimensions

Outline Drawing of QGY-M Thin Cylinder

QGY-M Compact Air Cylinder Heavy Type Bore 20-125 5

Outline Drawing of QGY (D)-M Thin Cylinder with Front Spring Single-Action

QGY-M Compact Air Cylinder Heavy Type Bore 20-125 6

缸径范围:Φ32~Φ125

QGY-M Compact Air Cylinder Heavy Type Bore 20-125 7

Größe und Tag:

geführter Pneumatikzylinder,
